BST100-EX1 Series Belt Weighfeeder Controller
|
| | | |
 |
 |
 |
| BST100-E01 |
BST100-E11 |
BST100-E21 |
| |
| Main Applications : |
| |

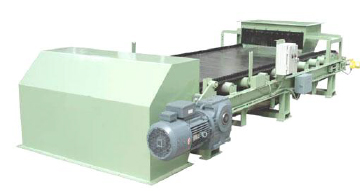

- Suitable for Ration Belt Weighfeeder with Ration Flow Feeding & Ration Weight Batch Control.
|
| |
| Main Features : |
| |
- ARM CPU system with EMC design and higher arithmetic speed.
- 128×64 dots LCD display screen with 7 background colors for Chinese /English display.
- Chinese/English keypad for Menu&Shortcut operation with key tone.
- Optional ‘External Speed’ or ‘Inner Speed’ working mode.
- Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
- Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.
- The feeder and belt weigher can be started and stopped by DI&DO.
- Quick and steady PID for ration feeding control available.
- 2 Optional communication ports for linking to IPC/PLC, remote display & operation terminal, serial printer and wireless module.
- Standard MODBUS communication protocol and support industry configuration software, e.g. iFix.
- Weight Records per shift/day/month of a year for querying and printing.
|
| |
| Technical Specifications : |
| |
- Power: AC220V±15%, 50/60Hz, Max. 15W.
- Loadcell Excitation Voltage: DC10V.
- Weighing Signal Input Range: 0~25mV.
- Max. Connection Quantity: 8 Loadcells (350Ω).
- 24-bit Σ-△ADC; Sampling Frequency: 100Hz; Non-linearity: 0.005%FS.
- Speed Sensor Excitation Voltage: DC5~12V (adjustable).
- Speed Signal Input Range: 0.5~3000Hz.
- 1 ‘Flow Setpoint’ Analog Signal Input [AI: 4~20mA, 0.05%FS].
- Max.3 Definable Analog Signal Outputs [AO: 4~20mA, 0.05%FS].
- 3 Definable Normally Open Switch Inputs and 4 Definable Normally Open Relay Outputs [DO: AC250V/DC24V, 1A].
- 1 ‘Totalized Weight High-speed Pulse’ Output [PO: DC5~24V, 100mA].
- COM1 Optional: RS232/RS485/RS422/Profibus-DP/CANBUS /Ethernet modules. COM2：RS232.
- Outline Dimension [W×H×D]
- E01: 86 × 164 × 193 mm.
- E11: 164 × 86 × 193 mm.
- E21: 202 × 305 × 90 mm.
- Cut Dimension [W×H]
- E01: 77 × 153 mm.
- E11: 153 × 77 mm.
- Service Temperature: -20℃~+40℃.
- IP Grade
- E01/E11: IP50.
- E21: IP65.
|
| |
 |
|
