GM8806A

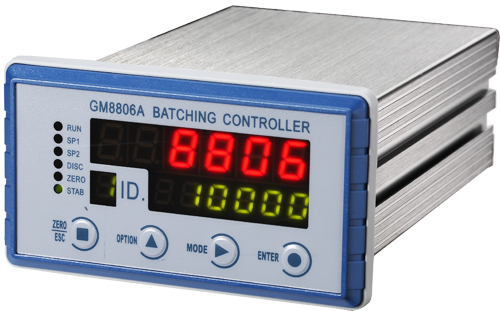

GM8806A Batching controller


The GM8806A is an extremely versatile and powerful controller that combines the functions of basic weighing, batching, and packaging into a compact and robust casing, which offers maximum flexibility by allowing you to alternate between the different function modes, thereby minimizing your inventory needs and offers unmatched combination of performance and flexibility.

Key Features
  • CE approved
  • Selectable up to 4 type of material batching
  • 14 I/O ports (4 inputs and 10 outputs)
  • Easy Switch between the 3 function modes, reducing inventory need for our distributors
  • Power-loss Protection function allows continued operation right after power-loss
  • Compact and ergonomic design for large systems where panel space is constrained
  • Allows the option of having both analogue and serial communication port simultaneously
  • Storing up to 40 recipes for different batching capacity.
  • Smart calibration without weights
  • Advanced free fall compensation algorithm for extremely precise result every time
    		•
    Key Features
    INIDICATOR POWER
      Power Supply   90V～260V AC 50Hz(or 60Hz)±2%
      Power Consume   10W
    A/D CONVERTER
      Type   24-bit Delta-Sigma
      Analogue input range   0.02mV to 10mV
      Linearity   <0.01%FS
      Gain Drifting   10PPM/℃
      Minimum Sensitivity   0.01 µ V/d
      Conversion Rate   120/s
      Display Accuracy   1 / 30,000
    DISPLAY & KEYBOARD
      Main Display 1   6 digits, 7 segments, LED
      Sub Display 2   6 digits, 7 segments, LED
      Extra Display   1 digit, 7 segments, LED
      Keyboard   4 membrane switches with beeping feedback
      Status Indicator   (6 indicator) RUN, SP1, SP2, DISC, ZERO, STAB
    CALIBRATION & WEIGHING FUNCTIONS
      Calibration   By test weight or by electronic calibration
      Digital Filter   Multiple FIR filter with 9 selectable levels
      Weighing Functions   zero, zero tracking, auto-zero at power
    ENVIORNMENTAL
      Operating Temperature   -10℃ to 40℃
      Storage Temperature   -25℃ to 70℃
      Relative Humidity   90% R.H without dew
      IP Level   Front panel IP 65
    LOAD CELLS
      Excitation   5V
      Load Cells   Drives 8pcs Load Cells 350Ω
    MECHANICAL DATA
      Dimensions & Weight   151×105×57 mm (L×W×H) weight approx. 550g
      Standard Mounting   Panel Mount
      Certification   CE
      Enclosure   ABS front panel, cast aluminum body
    DIGITAL INPUT
      Input Number   4
      Input Functions for batching mode   (11 Self-defined functions) Start, Stop, Zero, Clear Alarm, Change Recipe, Discharge, Key locker, Pause, Set tare, Clear Tare, Start/Stop
      Input Functions for packaging mode   (19 Self-defined functions) Start, Stop, Zero, Clear alarm, Change Recipe, Clip/Loose bag, Discharge(Step Signal), Discharge(Pulse signal), Manual fine feed, Key locker, Hi-limit, Low-limit, Gate close, Bag Clipped, Pause, Start/Stop, Clear total, Feeding blocked
    DIGITAL OUTPUT
      Output Number   10
      Output Functions for batching mode   (17 Self-defined meanings) Run, Stop, Fast-feeding, Moderate-feeding, Fine-feeding, Material1, Material2 , Material3, Material4, Fixing-value, Discharge, Over/Under, Batch complete, Near-Zero, Pause, Stable, Alarm.
      Output Functions for packaging mode   (20 Self-defined meanings) Run, Stop, Pause, Fast-Feeding, Moderate-feeding, Fine-feeding, Fixing Value, Over, Under, Alarm, Clip bag, Punching bag, Discharge, Near zero, Supply, Batch complete, Material short, Stable, Feeding blocked, No feeding
    INSTRUMENT WITH ANALOGUE OUTPUT(OPTIONAL)
      Type   Isolated 16-bit D/A converter
      Accuracy   0.04%
      Voltage Output   0-5V / 0-10V / -5-5V / -10-10V
      Current Output   4-20mA / 0-20mA / 0-24mA
    UART RS232/RS485 INTERFACE
      BUS   Standard Modbus RTU, Standard Modbus ASCII
      RS   General Measure Protocol
    PACKING MODE(SELECTABLE)
      Feeding   3 Feeding Speed, Jog-feeding supported
      Working mode   With Bin mode, Without Bin mode
      Packaging Mode    Gross Packing, Net Packing
      Recipe   40
      Extra   Free fall self-adjust, Punching bag function
    BATCHING MODE(SELECTABLE)
      Material   Support up to 4 materials
      Feeding   3 Feeding Speed, Jog-feeding supported
      Recipe   40
      Extra   Free fall self-adjust, Punching bag function
    PROCESS SAFETY
      Run resume when re-power on
      All parameter Backup & Recovery
      Parameter password protection
