TLE : Analog weight transmitter with RS485
| |
| TLE : 0-20 mA; 4-20 mA; 0-10 V; 0-5 V; ± 10 V; ± 5 V |
| |
| Options on request : |
- CASTL IP67 box version with transparent cover.
- CASTLPG9 transparent version with 6 PG9 cable glands.
- CASTLGUA transparent version with 6 PVC fi ttings (1)
- IP67 ATEX version
 II 3GD (zone 2-22)
|
| |
 |
| |
| |
|

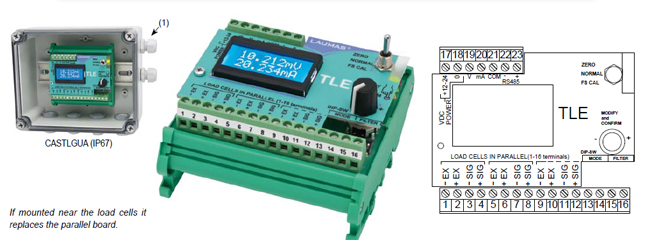

Weight transmitter and indicator for Omega/DIN rail mounting suitable for back panel or junction box. Dimensions: 90 x 95 x 60 mm. Eight-digit alphanumeric LCD two-line display (5 mm high). Digital rotary control (Encoder) with integrated button.
|
| |
|
IP67 box version, dimensions 170x140x95 mm. Four fi xing holes diameter 4mm (centre distance 122x152 mm).
|
| |
|
Simple zero setting and full scale, without using multimeter, through digital rotary control (Encoder). Display mV displaying, load cells and analog output value (V or mA ).
|
| |
|
No restriction on suppression tare and gain. Possibility to perform calibration or theoretical calibration with sample weights. Digital fi lter.
|
| |
|
The instrument is equipped with a RS485 serial port (transmission of divisions) for connection to PC/PLC up to 32 instruments (max 99 with line repeaters) by ModBus R.T.U. protocol. Optional protocols: Profibus DP, Ethernet/ModbusTCP, USB and Radio by appropriate converter.
|
| |
|
In monodirectional mode the RS485 port can be directly connected to PC’s RS232 port.
|
| |
|
16-bit optoisolated analog output, speeded (update time = 3 ms) selectable via dip-switches: 0-20mA; 4-20mA; 0-10V; 0-5V; ± 10V; ± 5V.
|
| |
POWER SUPPLY and CONSUMPTION |
12 - 24 VDC +/- 10% ; 3 W |
| |
No LOAD CELLS IN PARALLEL and SUPPLY |
max 8 ( 350 ohm ) ; 5VDC/120mA |
| |
LINEARITY / LINEARITY OF THE ANALOG OUTPUT |
< 0.01% Full Scale / < 0.01% F.S. |
| |
THERMAL DRIFT / THERMAL DRIFT OF THE ANALOG OUT. |
< 0.0005 % F.S. /°C < 0.003 % F.S. /°C |
| |
A/D CONVERTER |
24 bit (16000000 points) 4.8kHz |
| |
MAX DIVISIONS (with measure range: +/- 10mV =2mV/V) |
± 999999 |
| |
MEASURE RANGE |
± 39 mV |
| |
MAX LOAD CELL’S SENSITIVITY |
± 7 mV/V |
| |
MAX CONVERSIONS PER SECOND |
300 conversions/sec. |
| |
DIGITAL FILTER / CONVERSION RATE |
0.003÷4 s / 10÷300 Hz |
| |
SERIAL PORT |
RS485 |
| |
BAUD RATE |
2400, 4800, 9600, 19200, 38400, 115200 |
| |
HUMIDITY (condensate free) |
85 % |
| |
STORAGE TEMPERATURE |
- 30°C + 80°C |
| |
WORKING TEMPERATURE |
- 20°C + 60°C |
|
