TLS485 : Digital weight transmitter with RS485


Options on request :
  • CASTL IP67 box version with transparent cover
  • CASTLPG9 transparent version with 6 PG9 cable glands
  • CASTLGUA transparent version with 6 PVC fi ttings
  • CASTLTAST IP67 box version with external keypad
  • CASTLTASTPG9 keypad vers. with 6 PG9 cable glands
  • CASTLTASTGUA keypad version with 6 PVC fi ttings
  • IP67 ATEX version II 3GD (zone 2-22)
  • 2 Analog inputs 0-10V, 10 bits (they replace logic inputs)

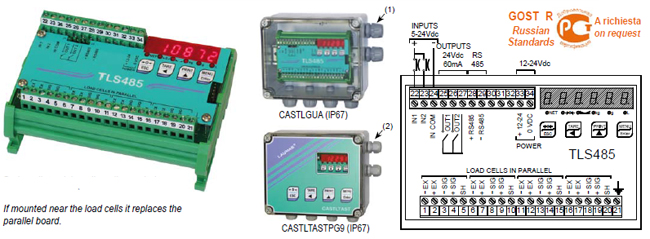

Weight transmitter and indicator for Omega/DIN rail mounting suitable for back panel or junction box. Six-digit semialphanumeric display (8mm h), 7 segment LED. Four-key keyboard. Dimensions: 123x92x50 mm. IP67 box version, dimensions: 170x140x95mm. Four fi xing holes diameter 4mm (centre distance 122x152mm).

The instrument is equipped with a RS485 serial port for connection to :
     - PC/PLC up to 32 instruments (max 99 with line repeaters) by ASCII Laumas protocol (compatible with W60000) or ModBus RTU. Optional protocols: Profi bus DP, Ethernet/ModbusTCP, USB and Radio by appropriate converter.
     - Remote display.

THEORETICAL CALIBRATION is performed via the keyboard.

Technical Features :

     POWER SUPPLY and CONSUMPTION    12 - 24 VDC +/- 10% ; 5 W
     No LOAD CELLS IN PARALLEL and SUPPLY    max 8 ( 350 ohm ) ; 5VDC/120mA
     LINEARITY    < 0.01% Full Scale
     THERMAL DRIFT    < 0.0005 % F.S. /°C
     A/D CONVERTER    24 bit (16000000 points) 80Hz
     MAX DIVISIONS (with measure range: +/- 10mV =2mV/V)    +/- 999999
     MEASURE RANGE    +/- 19.5 mV
     MAX LOAD CELL’S SENSITIVITY    +/- 3 mV/V
     MAX CONVERSIONS PER SECOND    80 conversions/sec.
     DISPLAY RANGE    - 999999 ; + 999999
     DECIMALS / DISPLAY INCREMENTS    0 - 4 ; x 1 x 2 x 5 x 10 x 20 x 50 x 100
     DIGITAL FILTER / CONVERSION RATE    0.080 - 7.5 sec / 5 - 80 Hz
     OPTORELAYS LOGIC OUTPUTS    N.2 - max 24 VDC / 60mA
     LOGIC INPUTS    N.2 - optoisolated 5 - 24 VDC PNP
     SERIAL PORT    RS485
     BAUD RATE    2400, 4800, 9600, 19200, 38400, 115200
     HUMIDITY (condensate free)    85 %
     STORAGE TEMPERATURE    - 30°C + 80°C
     WORKING TEMPERATURE    - 20°C + 60°C

The two inputs can work as: net/gross weight, zero-setting, peak, or can be remotely read via protocol.
The three outputs can work as set-points or can be remotely switched via protocol. In monodirectional mode the RS485 port can be directly connected to PC’s or remote display’s RS232 port.
