S-Type load cell S20S
|
| Capacity: 100 - 1.000 kg |
| Alloy steel, nickel plated |
| |
| The S type load cell S20S was specifically designed for measurement of train-and pressure forces. Transducers of this type are symmetrical and have a central thread in the upper and lower part of the load cell to introduce the load which can either be in tension or compression. |
| The load cells are manufactured from nickel plated alloy steel and characterized with high accuracy and linearity. |
| These load cells up to 500 kg are approved to OIML R60 for 3000 d and guarantee accurate and reproducible results over a long term in harsh industrial environments. |
| The current calibration output ensures easy and accurate parallel connection of multiple load cells, which removes the need for corner load adjustment. |
| The S20N load cells meets the requirements of protection class IP67. |
| |
| Typical Application: Hybrid scales, overhead track scales, crane scales, Suspended Hoppers- and Tank Scales and weighing systems. Typical application also medical lifter bariatric scales, BIG-BAG Scales, belt scales and process weighing applications. Force measurements, material testing and the monitoring of cable tension in lift and cranes to prevent overload. Other applications include torque measurements on engines (dynamometer), transmissions and power brakes. |
| |
 |

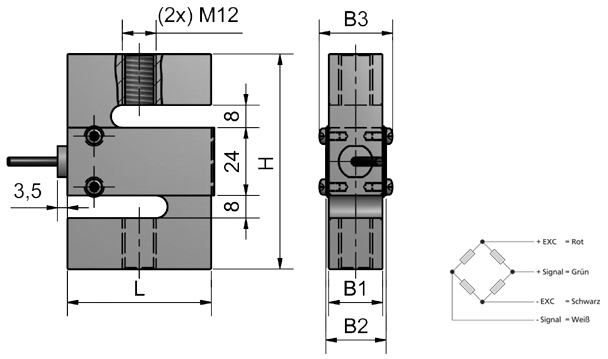

| Last |
B1 |
B2 |
H |
L |
| 100-750 Kg. |
19,1 |
19,5 |
76,2 |
51 |
| 1000 Kg. |
25,4 |
26 |
76,2 |
51 |
| 1200-5000 Kg. |
31,8 |
32,5 |
100,4 |
76,2 |
|

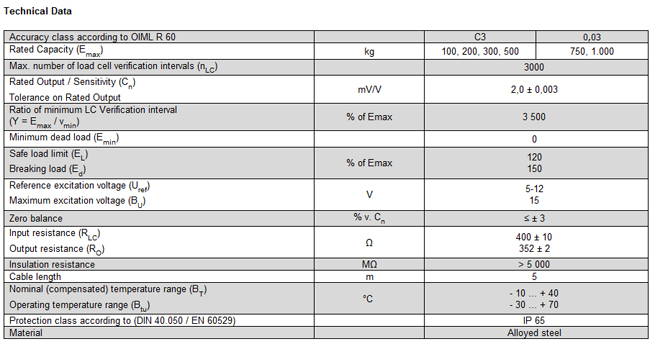

Material: Nickel plated alloy steel construction

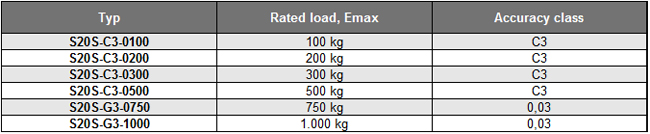

Available in capacity ranges from 100 to 1.000 kg
Accuracy class C3, Y= 3.500
Approved to OIML R60 up to 3000 d
Protection class: IP 67
Design: The measuring element is potted and has trimmed output
Suitable for compression and tension application
Ideal for all hanging scales
Load introduction by symmetrical threaded holes at the top and bottom of the load cell
Compatible with other sources
|

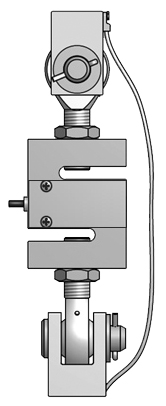

| Mounting module |
| This transducers are symmetrical and have threaded holes top and bottom to introduce the load which can either be in tension or compression. |
| Correct mounting of the load cell is essential to ensure optimum performance. |
|
